Product Description

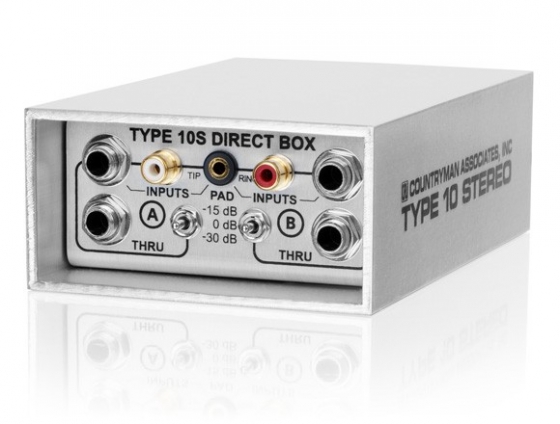

The Type 10S is a two-channel version of the Type 10 direct box, delivering industry-leading technical performance with new features to meet the unique needs of stereo and two-channel users.Frequency Response 10 Hz to 50 kHz (+/- 1 dB)
Deviation from Linear Phase:
30 Hz: +/- 2°
100 Hz to 20 kHz: 0°
Noise (shorted input, BW = 22 Hz to 20 kHz): 1.8 uVrms (-115 dBVrms)
Distortion (1 Vpp in, RL= 1.2 kOhm through 200 feet of XLR cable):
THD (1 kHz): < 0.001%
THD (30 Hz to 20 kHz): < 0.005%
IMD (10 kHz/60 Hz, 4:1): < 0.002%
Cross-Talk Rejection: > 105 dB (20 Hz to 20 kHz)
Power Options:
48 V Phantom (1.5 mA)
9 V Battery (4.8 mA, 130 hours on a typical alkaline)
Input Protection: 220 Vrms and 20,000 V static discharges
Transformer Isolation Voltage: > 500 V from instrument ground to either XLR output pin 1

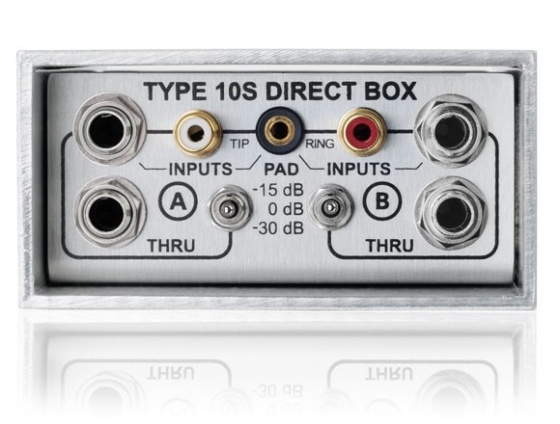

Padding Settings:
0 dB
-15 dB
-30 dB
RF Filtering:
Input: 1.5 MHz low-pass filter
Output: 60 kHz low-pass filter
Maximum Input Level (1% THD):
0 dB pad: 5 Vpp
-15 dB pad: 28 Vpp
-30 dB pad: 158 Vpp
Input Resistance:
0 dB pad: 10 MOhm
-15, -30 dB pad: 10 kOhm
RCA and 1/8" inputs: 20 kOhm
Input Capacitance: 240 pF (equal to 3 ft of low-capacitance guitar cable)

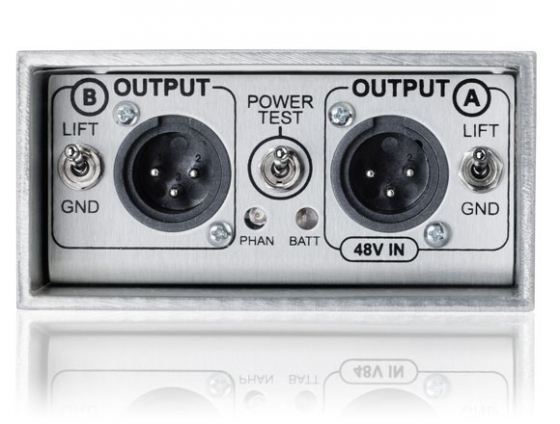

Output Polarity: Pin 2 positive
Dimensions: 6.25" x 4" x 2" (159 mm x 102 mm x 51 mm)
Weight: 31.2 oz (0.88 kg)
